A wire harness service loop is a deliberate reserve of cable length placed near a connector, terminal, enclosure door, removable module, or serviced component. It gives technicians enough slack to disconnect, inspect, replace, or reposition a part without pulling directly on the crimp, seal, solder joint, ferrule, or overmolded transition. In production, it also absorbs realistic build variation between the drawing, harness board, enclosure, and final installation.
The key word is deliberate. A service loop is not leftover wire hidden under tape. It is a controlled feature with a location, length, radius, support point, and inspection method. When that control is missing, extra length can become a failure source: abrasion against brackets, side-load on sealed connectors, trapped liquid, poor EMI behavior, or conductor fatigue in vibration.
Standards and references give useful boundaries, but they do not calculate the service loop for you. Workmanship expectations such as IPC/WHMA-A-620 help define acceptable harness workmanship, while broader quality systems such as ISO 9001 reinforce documented process control. The actual loop still needs to be engineered around the cable OD, jacket material, installation envelope, vibration profile, and service task.
"A useful service loop has a measured job. If the drawing only says 'leave extra slack,' production will build three different harnesses. We normally define the loop in millimeters, clamp distance, and minimum bend radius before first article approval."
- Hommer Zhao, Technical Director
Service Loop Sizing by Application
| Application | Typical Slack | Bend Radius Target | Main Risk | Production Control |
|---|---|---|---|---|
| Control panel wiring | 25-75 mm per serviced termination | 6x cable OD minimum | Door swing or rework access pulls ferrules loose | Route behind wire duct with labeled service length |
| Automotive sensor branch | 30-80 mm near connector | 8x to 10x cable OD near sealed connector | Vibration turns slack into abrasion | Clip 50-150 mm from connector and sleeve rub points |
| Robotic arm cable | Defined bend zone, not loose surplus | Manufacturer dynamic radius, often 10x OD or higher | Repeated flex breaks conductors or shield braid | Cycle-test routed sample with final clamp geometry |
| Medical cart harness | 50-150 mm for service removal | 6x to 8x cable OD | Pinch during cover installation or cleaning | Cover-close check plus strain relief verification |
| Outdoor waterproof assembly | 50-200 mm, with drip path controlled | 8x to 10x OD near gland or overmold | Water tracks toward connector or seal is side-loaded | Drip loop orientation and IP validation |
| Aerospace or defense harness | Drawing-defined only | Program standard or customer requirement | Unapproved slack violates routing and support rules | First article photo, tie spacing, and inspection record |
These ranges are starting points, not universal rules. A 40 mm loop can be excessive on a tiny sensor pigtail and inadequate on a cabinet door harness. Final sizing should be confirmed with the actual enclosure, connector, clamp, and installation sequence. For broader harness layout decisions, pair this guide with our wire harness routing optimization guide and bend radius guide.
Five Design Rules for Controlled Service Loops
1. Start with the service motion
Define what the technician must do: unplug a sensor, swing open a door, lift a module 100 mm, remove a cover, or probe a test point. The service loop should support that motion with enough slack to avoid tensile load at the connector. If no service motion exists, extra length may be unnecessary.
2. Protect the minimum bend radius
Many static harness branches use 6x to 10x cable OD as a practical starting range, while dynamic and shielded cables often need a larger radius. A loop that helps service access but creates a sharp turn at the connector is not acceptable. Validate the radius with the actual jacket, shield, and branch breakout geometry.
3. Put the clamp after the loop does its job
The first support point decides whether the service loop relieves strain or transfers it into the connector. In many harnesses the first clip, tie, or saddle sits 50 to 150 mm from the connector, but the correct value depends on cable stiffness, vibration, connector mass, and access clearance. Review the loop together with strain relief rather than as a length-only feature.
4. Avoid abrasion, heat, liquid, and noise traps
Extra length must not sit against sharp sheet metal, hot engine surfaces, moving linkages, or high-noise power conductors. For shielded harnesses, loop position can change coupling and ground path consistency. Where the loop may rub, specify sleeve length, tape zone, edge protection, or a fixed clip position.
5. Dimension the loop on the drawing
Use a datum, loop length tolerance, clamp reference, and board photo when possible. A note such as "service loop, 75 mm +/-10 mm from connector rear to first support" is far more buildable than "provide slack." On assemblies with replaceable modules, include the service position in the first article photo set.
"The common mistake is adding 100 mm everywhere. A 100 mm loop may solve cabinet access, but in a vibrating vehicle branch it can become an unsupported mass. We size slack from the service motion first, then check vibration and bend radius."
- Hommer Zhao, Technical Director
Manufacturing Controls That Keep Loops Repeatable

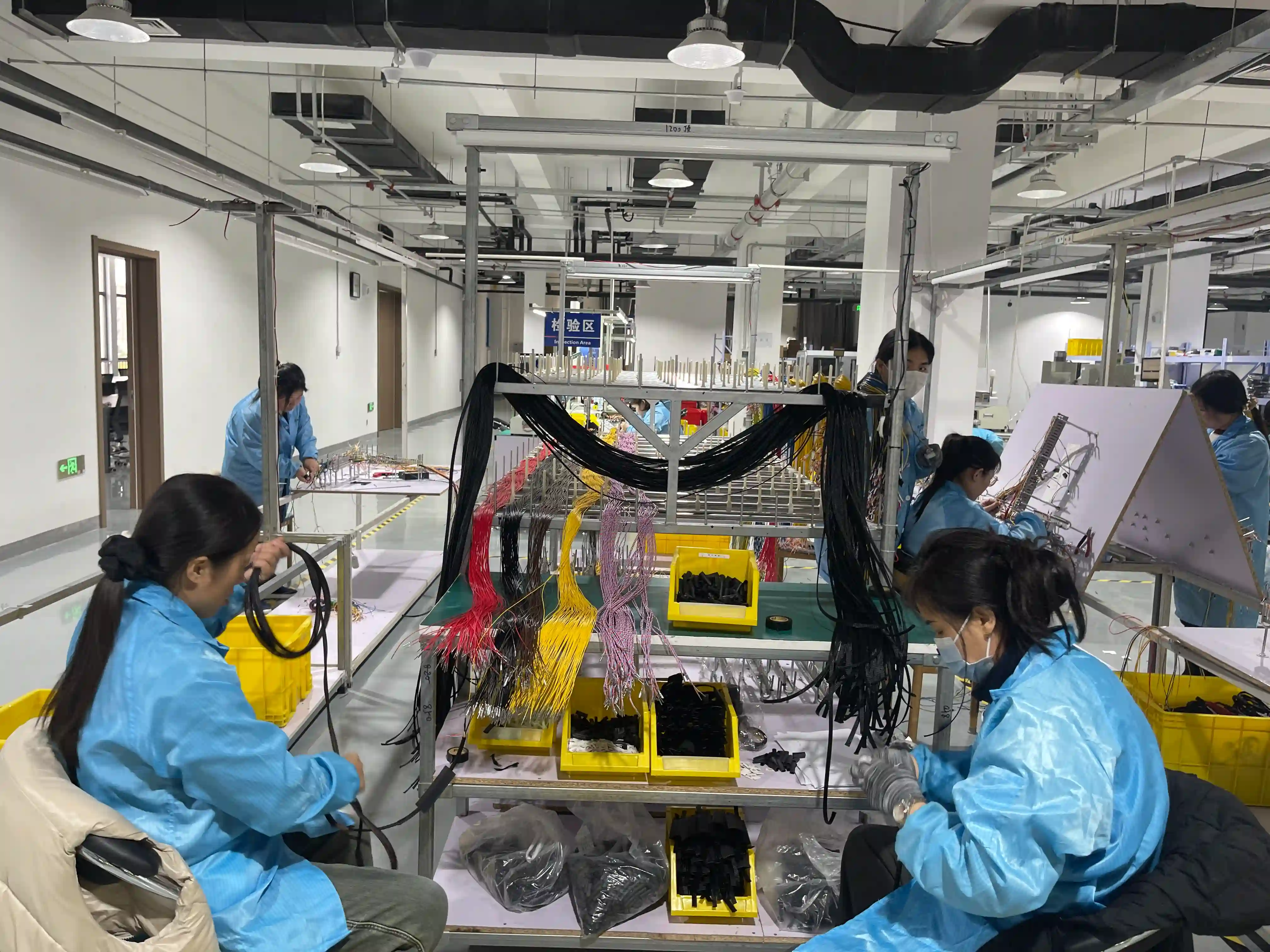

Service loop quality starts before final assembly. Cut length, branch breakout location, connector clocking, label placement, and fixture pegs all affect whether the installed loop matches the design intent. A harness board should represent the desired loop shape or include a clear instruction for forming it after enclosure installation.
For a custom wire harness, the most useful controls are simple: one drawing dimension, one first article photo, and one inspection line item. The inspector should be able to answer whether the loop is the correct length, the bend radius is clean, the support point is installed, and the connector can be serviced without load.
When a loop is created during enclosure installation instead of on the harness board, provide a work instruction. The operator may need to route through a grommet, snap the connector into a bracket, close a hinged panel, or install a cable gland before the service loop reaches its final shape. This is common in control panels, box builds, medical carts, and vehicle modules.
Failure Modes to Prevent
Connector side-load caused by loop tension after installation
Abrasion where extra length touches a bracket or cover edge
Conductor fatigue from unsupported vibration movement
Shield braid damage from a loop bent below the dynamic radius
Water tracking along a loop toward the connector instead of away
Label or heat-shrink placement that blocks clamp inspection
Vibration-sensitive equipment should also be reviewed against our wire harness vibration fatigue guide. If the service loop moves during operation, it is part of the mechanical design, not just an installation convenience.
"For high-flex programs, the loop is a life-limited geometry. We do not approve it by appearance alone. The routed sample must match the final clamp spacing and survive the agreed cycle test, whether that target is 1 million or 10 million cycles."
- Hommer Zhao, Technical Director
Service Loop Validation Checklist
- Confirm loop length against drawing tolerance, such as +/-10 mm for a short equipment branch.
- Check bend radius with the actual cable OD, jacket, shield, and branch breakout.
- Verify the first clamp, clip, tie, or saddle position after the service motion is complete.
- Open and close covers, doors, trays, or modules through the full service range.
- Inspect for rub points against metal edges, fasteners, brackets, hinges, and molded covers.
- Confirm sealed connectors, glands, and overmolds are not side-loaded by the final loop shape.
- Record first article photos for service position and installed position.
FAQ: Wire Harness Service Loops
How much slack should a wire harness service loop have?
Most service loops start with 25 to 75 mm of controlled extra length for small equipment and 100 to 300 mm for larger cabinets or vehicles, but the final value must preserve the cable bend radius and connector access requirement.
Where should a service loop be placed in a wire harness?
Place the loop near the connector or service point, after the last clamp, with enough clearance to avoid sharp edges, hot surfaces, moving parts, and EMI-sensitive routing. Many designs keep the first clamp 50 to 150 mm from the connector depending on cable OD and vibration.
Can a service loop cause wire harness failures?
Yes. An uncontrolled loop can rub, resonate, trap liquid, violate a 6x to 10x cable-OD bend radius, or pull against the connector during vibration. The loop needs clamp spacing, abrasion protection, and inspection criteria.
Do high-flex cable assemblies need different service loops?
Yes. Dynamic applications such as robotics often need a loop or bend zone designed around cycle life, usually with fine-stranded conductors, TPE or PUR jackets, and validated bend radii before 1 million to 10 million cycle targets are approved.
Should service loops be shown on the harness drawing?
Yes. The drawing should define loop location, extra length, clamp distance, bend radius, tie method, and inspection tolerance. A 2D drawing note plus a board or fixture photo is often clearer than a single overall length dimension.
How do you inspect a wire harness service loop in production?
Inspect loop length, bend radius, clamp location, abrasion sleeve coverage, connector orientation, and pull-free service access. For critical programs, add first article photos and a dimensional tolerance such as +/-10 mm on the loop datum.
