A measurement cable quote should explain how the assembly protects the signal path, not just how fast it can ship

Buyers usually come looking for test and measurement cable assemblies when a standard off-the-shelf lead no longer fits the bench, the fixture, or the installation. The issue may be connector geometry, controlled routing, shield treatment, repeated mating cycles, or the need to combine several interfaces into one release package. That is why this page sits between broad custom cable assembly demand and deeper process discussions such as testing capabilities and connector assembly services.

Our process is grounded in public references for the technologies involved, including the fundamentals of test equipment, coaxial cable, and shielded cable. The practical point is simple: once the cable assembly becomes part of the measurement chain, poor shielding, unstable connectors, or weak labeling create troubleshooting cost far beyond the cable price.

Hommer Zhao puts the buying issue directly: "A cable can pass continuity and still fail the bench if the shield is terminated the wrong way, the connector loosens after repeated mating, or similar channels are packed without clear identification. The quote has to show how those risks are controlled before production starts."

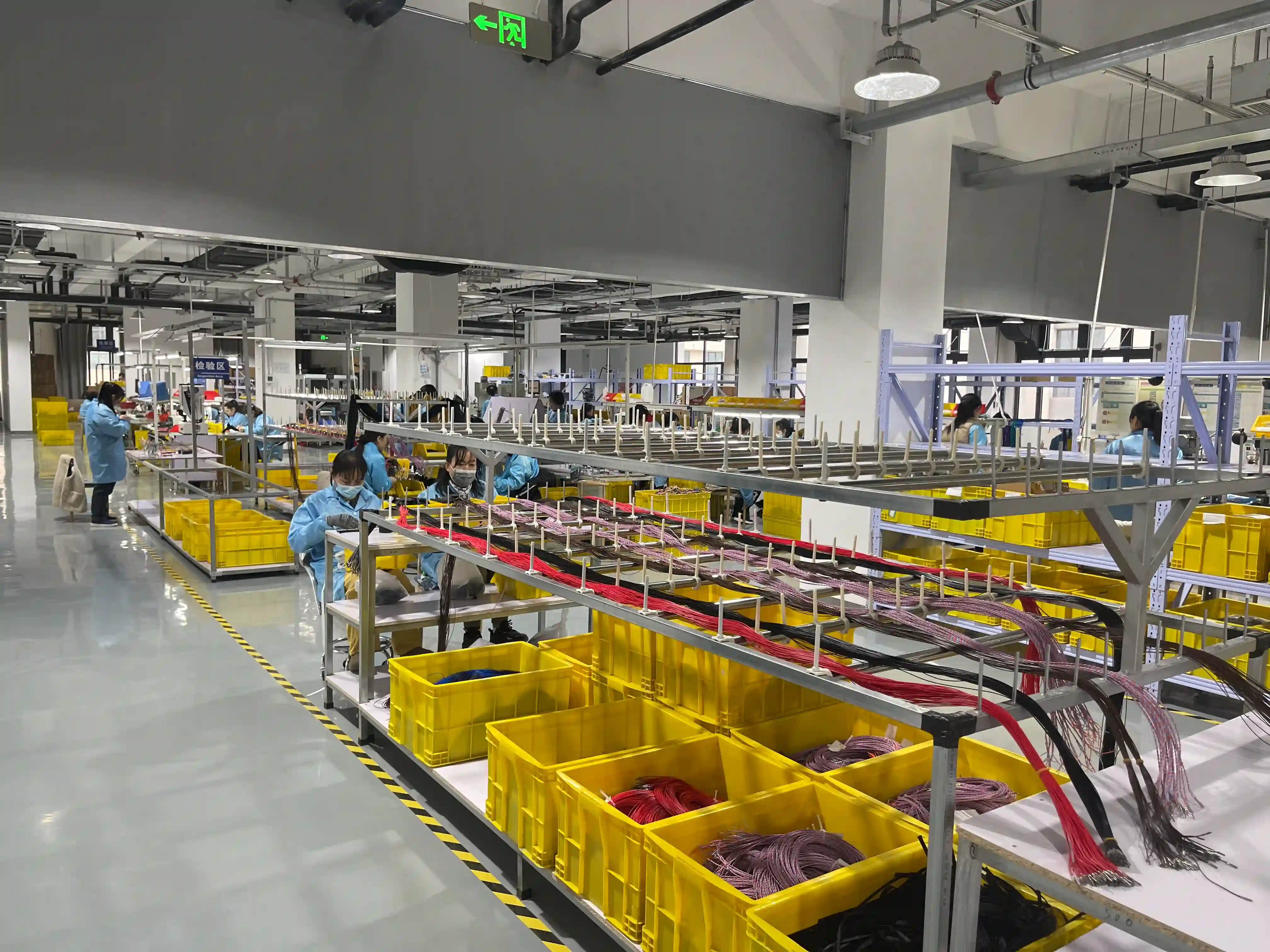

Instrumentation cable assembly production line
Core Pillars

What This Capability Controls

This page targets commercial buyers comparing suppliers for instrumentation cable work, so the central question is how the approved cable set stays stable across repeat orders.

Signal Integrity First

Measurement cables are released around impedance, shielding, grounding, and connector geometry so the interconnect does not distort the equipment result.

Connector Control For Repeated Mating

Test setups are connected and disconnected often, so retention, torque, strain relief, and contact stability matter as much as the cable itself.

Mixed Signal And Power Harness Builds

Many programs need more than one simple coax jumper. We support breakout harnesses, sensor bundles, trigger leads, and hybrid assemblies for bench and field validation systems.

Inspection Mapped To Measurement Risk

Continuity alone is not enough for many instrumentation programs. We define the right mix of pinout, shield, insulation, and fit verification before production starts.

Released Documentation For Repeat Builds

Lab and OEM teams often reorder the same cable set for multiple benches or service spares. Revision control keeps the approved assembly stable over time.

DFM Review Before Procurement Locks

We review cable type, connector family, bend radius, labeling, and packaging so a measurement harness does not get quoted with hidden sourcing or fit risk.

Failure Prevention

Instrumentation Cable Production Controls

These are the practical control points that separate a repeatable measurement cable supplier from a build that only works once on one bench.

CheckpointCommon FailureOur Control
Cable constructionA drawing says shielded cable, but the actual shielding style, impedance target, conductor construction, or flex expectation is still vague.We close cable construction around the release data, whether the need is coax, twisted pair, multi-conductor, or mixed harness architecture.
Connector interfaceMeasurement assemblies fail in service because mating cycles, torque behavior, keying, or adapter stack-up are treated as afterthoughts.Connector family, plating, retention style, and strain relief are reviewed against the real bench or field-use pattern before the route is released.
Shield and ground continuityThe cable passes basic continuity, but shield termination, drain treatment, or grounding strategy creates unstable readings or noise pickup.We define shield termination and grounding intent in the build package and align verification with the actual instrumentation risk.
Identification and packoutSimilar assemblies arrive without clear labels, channel IDs, or length identification, slowing setup and increasing the risk of wrong-cable installation.Labels, channel markers, protective caps, bagging, and variant separation are finalized before shipment so the assembly reaches the bench installation-ready.

For buyers launching a new bench or duplicating a validated setup, first article discipline matters because connector fit, label logic, and grounding treatment have to be proven before repeat production begins. Public background on first article inspection explains the same release principle in broader manufacturing terms.

Fit Criteria

Technical Scope And Limits

This offer is for cable and harness assemblies used in instrumentation and validation systems, not a generic catch-all for unrelated electronics work.

Best-fit programs

Oscilloscope and analyzer leads, RF and coax interconnects, DAQ harnesses, sensor and transducer cable sets, industrial instrumentation wiring, and calibration fixture cable kits.

Typical connector families

BNC, SMA-adjacent RF interfaces, circular industrial connectors, D-sub variants, terminal blocks, board-edge cable connectors, and mixed connector sets inside one harness.

Supported processes

Cutting, stripping, crimping, soldering where specified, shield termination, heat shrink, braiding, labels, continuity checks, fit verification, and final packaging.

Buyer input package

Released drawing, BOM, cable specification, impedance or shielding notes when relevant, connector part numbers, pinout, test expectations, and packout rules.

Quality framework

ISO 9001 controls with workmanship expectations aligned to IPC/WHMA-A-620, plus customer-specific handling for lab, industrial, medical, and defense instrumentation programs.

Out of scope

PCB fabrication, SMT or PCBA work, undocumented redesigns, and silent substitutions that alter mating behavior or signal performance without approval.

Instrumentation cable inspection and quality verification
Inspection Protects The Result

The cable assembly should disappear into the measurement workflow instead of becoming the reason a bench is unreliable

In many instrumentation programs, the most expensive failure is not a visibly broken cable. It is the intermittent one that creates unstable data, slows calibration, or sends engineers chasing the wrong root cause. That is why we connect coaxial assembly, shielded cable construction, verification planning, and when needed sensor harness routing into one released build path.

Buyers changing suppliers often need documentation as much as labor. Channel IDs, connector orientation, shield termination notes, and spare-kit packaging reduce the chance that one approved sample turns into several subtly different field variants. Programs frequently pair this capability with BNC assemblies, test-method planning, and the release controls used in our cable assemblies manufacturer workflow.

"Instrumentation cable problems are expensive because they look like system problems first. Clear shielding rules, stable connectors, and unambiguous labels remove a lot of false debugging work."Hommer Zhao, Cable Assembly Engineering Director
