Custom J1962 Diagnostic Cables

OBD-II Cable Assembly

Custom OBD-II diagnostic cable assemblies for telematics devices, scan tools, fleet gateways, automotive service equipment, and vehicle test fixtures.

Request OBD-II Quote Technical Support

J1962

Connector Interface

100%

Pinout Test Option

Forced Sample MOQ

24h

RFQ Response Target

Buyer Use Cases

OBD-II Cable Assembly Applications

Most OBD-II programs fail when the supplier treats the cable as a generic adapter. We build around the actual vehicle interface, device connector, protocol, and test plan.

Telematics and Fleet Devices

OBD-II pigtails, Y-cables, and pass-through harnesses for GPS trackers, data loggers, insurance devices, and fleet gateways.

Diagnostic and Service Tools

Durable J1962-to-USB, J1962-to-DB9, or custom-end diagnostic leads for scan tools, benches, and service equipment.

Vehicle Test Fixtures

Repeatable cable sets for end-of-line testing, harness validation, calibration benches, and controlled CAN access.

Aftermarket Hardware

Short-run or recurring cable assemblies for plug-in automotive accessories where fit, strain relief, and labeling matter.

RFQ-Stage Engineering

Built for the Vehicle Port and the Device, Not Just the Connector

The OBD-II interface uses the J1962 diagnostic connector, but that does not make every cable interchangeable. A telematics Y-cable, a scan-tool lead, and a vehicle test fixture can share the same plug while needing different pin populations, cable exits, branch lengths, shielding, and validation records.

Our engineering review ties the connector selection to CAN bus signal integrity, SAE J1962 mechanical fit, ISO 15765-4 diagnostic communication expectations, IPC/WHMA-A-620 workmanship criteria, and UL 758 wire options when the final equipment needs safety-file alignment.

A typical buyer scenario is a fleet-hardware team comparing three suppliers for a plug-in gateway. The questions that decide the supplier are practical: will the J1962 plug clear the driver footwell, will the CAN pair stay twisted to the branch point, will the battery feed use the specified gauge, and will every lot ship with pinout evidence instead of only a visual pass?

Send OBD-II RFQ Compare CAN Bus Cables

Factory-side control focuses on pinout, strain relief, cable exit direction, and test coverage before repeat production.

What We Control

Capability Table

Use this table to check whether your RFQ package gives enough detail for repeatable OBD-II cable production.

Connector interface

SAE J1962 Type A and Type B

Right-angle, straight, panel-mount, pigtail, and extension styles reviewed against enclosure and vehicle-port access.

Supported signals

CAN, K-line, power, ground, OEM-defined pins

Pinout is built from the released drawing, not assumed from a generic OBD pin table.

Cable construction

Shielded twisted pair, multi-conductor, hybrid

CAN pairs, battery feed conductors, wake lines, and discrete signals can be combined in one assembly.

Workmanship framework

IPC/WHMA-A-620 alignment

Crimp height, conductor brush, insulation support, soldered points where specified, and strain relief are controlled before release.

Material compliance

UL 758 wire options available

Jacket, conductor size, flame rating, and temperature class can be matched to the customer safety file when required.

Order profile

No forced MOQ for samples

Prototype and first-article builds can move before production lots, with 24-hour RFQ response target after drawing review.

From Sample to Lot Release

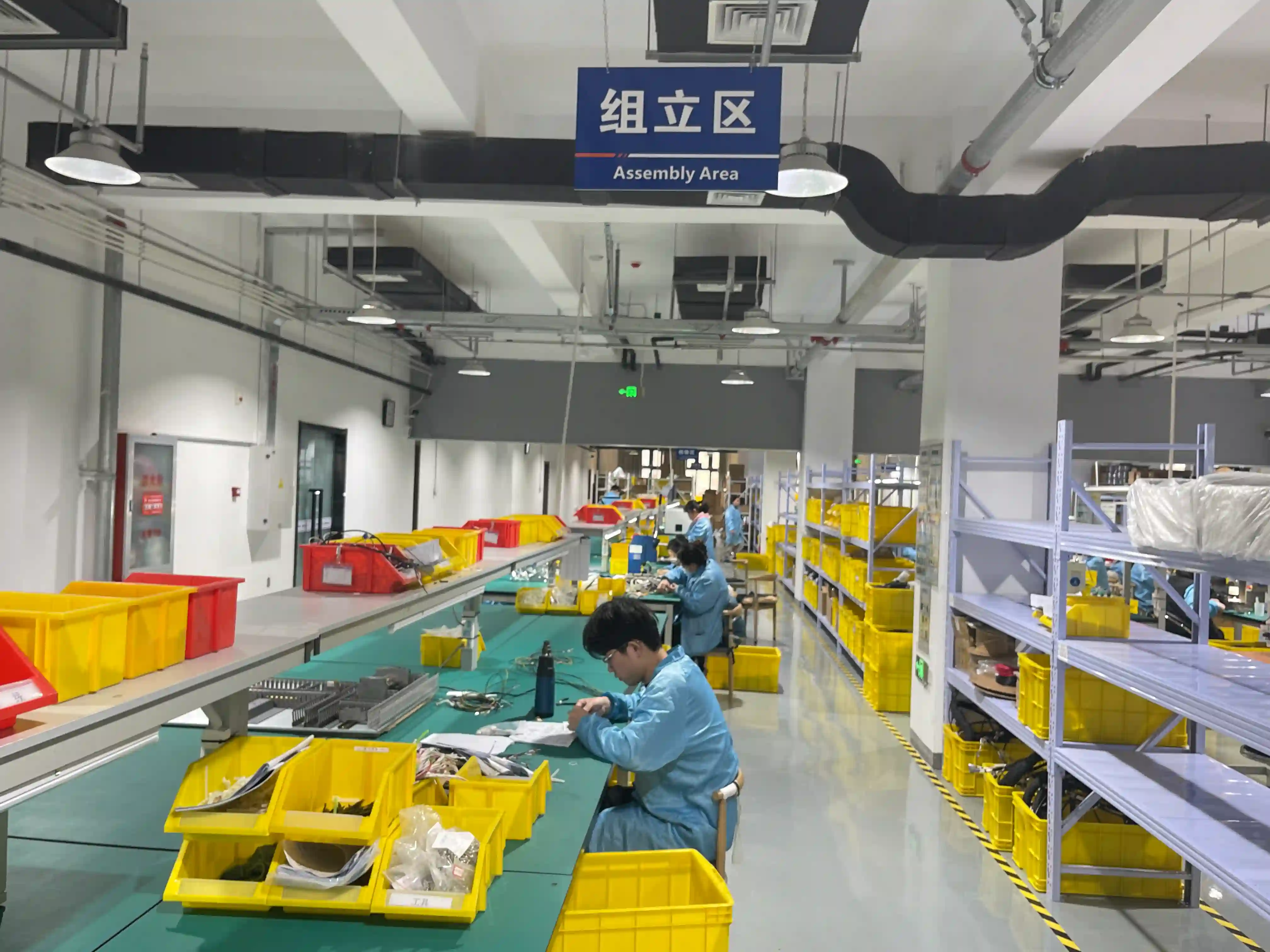

Production Process

The process is designed for buyers who need one approved cable to become a repeatable manufacturing route.

Port and Pinout Review

We confirm J1962 shell style, pin population, cable exit direction, vehicle clearance, and whether the cable needs pass-through access.

Signal and Power Planning

CAN pair routing, shield termination, battery feed gauge, fuse or protection assumptions, and optional OEM pins are closed before quoting.

First Article Build

The first build is checked for connector seating, pin retention, cable length, overmold or heat-shrink fit, labels, and drawing match.

Production Test

Every OBD-II assembly can receive 100% continuity and pinout testing, with hipot, insulation resistance, pull-force, or CAN communication checks added for higher-risk programs.

OBD-II RFQ Checklist

J1962 plug type, exit angle, locking tab, and panel or inline requirement
Complete pinout, including unused, reserved, and OEM-specific pins
CAN speed, protocol note, shield bonding method, and termination requirement
Cable length, jacket material, bend radius, temperature exposure, and abrasion risk
End B connector: DB9, USB adapter lead, open wire, Molex, JST, Deutsch, or custom
Label text, serialization, packaging, first article evidence, and test report needs

Risk Controls

Quality and Compliance Planning

Diagnostic cables often sit in a high-touch vehicle location, so mechanical fit and electrical verification matter as much as the pin map.

Mechanical Fit

J1962 shell depth, cable exit, bend radius, and strain relief are reviewed against the installed vehicle environment.

Electrical Verification

Continuity, pinout, shorts, opens, shield continuity, and optional CAN communication checks are tied to the drawing.

Lot Traceability

Labels, revision records, approved alternates, and shipment packaging can be controlled for recurring production.

For procurement teams, the decision is usually between a low-cost adapter and a controlled production cable. Choose the controlled route when the cable powers a field device, stays installed in the vehicle, carries CAN communication, or must ship with inspection evidence under ISO 9001, IATF 16949, or customer-specific quality requirements. Public references for ISO 9001 and IPC workmanship standards are useful background, but the released drawing and test plan remain the source of truth for each build.

Buyer Questions

OBD-II Cable Assembly FAQ

Yes. We build OBD-II pigtails, extensions, Y-cables, and pass-through assemblies. The RFQ should define which pins pass straight through, which pins branch to the device, and whether power, ground, or CAN lines need protection or shielding.

No. The physical J1962 connector is standardized, but the populated pins, protocols, OEM-specific signals, and device-side connector vary by application. We manufacture to the released drawing and verify pinout on every production lot.

Yes. We support CAN-based diagnostic wiring, including controlled twisted-pair routing, shielded cable options, and checks against ISO 15765-4 or customer-specific CAN requirements where they apply.

Most programs use 100% continuity and pinout testing. Depending on vehicle voltage, installation risk, and customer requirements, we can add hipot, insulation resistance, pull-force, visual connector inspection, and functional CAN communication checks.

Send the J1962 connector style, pinout, cable length, end-B connector, expected volume, test requirements, label rules, and any vehicle clearance constraints. A drawing or sample is best, but our engineering team can help convert a concept into a controlled build package.

Related Cable Assembly Services

Cable Assembly

Need Custom OBD-II Cable Assemblies?

Send your J1962 connector style, pinout, cable length, device-side connector, and test requirements. Our engineering team can review the RFQ and return a practical production plan.
