Ribbon cables are flat, rectangular cables with multiple conductors lying in a single plane, widely used in industrial machinery, medical devices, telecommunication systems, and automotive electronics. Their compact form factor and ability to support high conductor counts make them ideal for space-constrained, high-density signal transmission. For cable-to-board interconnects, ribbon cables require specialized connectors—most commonly insulation displacement connectors (IDCs)—that enable fast, repeatable termination without soldering, reducing assembly time and ensuring consistent electrical performance.
Understanding Ribbon Cable Connectors and IDC Technology
IDC connectors are designed with multiple rows of sharp, forked contacts. When a ribbon cable is pressed into the connector, these contacts pierce the insulation and establish a gas-tight, reliable electrical connection with the conductors. This mass-termination technique eliminates the need for stripping and soldering individual wires, dramatically improving production efficiency and reducing the risk of human error. Typically, IDC connectors are used at both ends of a ribbon cable, but in applications requiring wiring changes or breakouts, one end may use an IDC while the other employs a solder or crimp termination.
Connector Types for OEM Applications
A range of IDC connector options are available to meet diverse design requirements:
- BT224 (Standard IDC): Defined by DIN 41652, BS9525, and MIL‑C‑83503, these connectors are common in ATA cable assemblies. They mate with 0.1‑inch (2.54 mm) pitch double‑row pin headers or dedicated plugs.
- D‑Subminiature: Available in IDC variants for legacy serial and parallel ports, offering a rugged interface for industrial controls.
- Micro‑Ribbon: 36‑pin (printer) and 50‑pin (SCSI) versions address data‑bus connections in computing and networking equipment.
- DIN 41612: Designed for Eurocard backplane systems, these connectors support modular board‑to‑board architectures.
- PCB Transition Headers: Double‑row headers with standard IDC spacing, directly solderable to printed circuit boards for permanent cable‑to‑board links.
- DIL Headers: Featuring IC‑compatible pin spacing, they are used for in‑circuit emulation or as transition connectors on stripboard, avoiding the need to cut tracks.

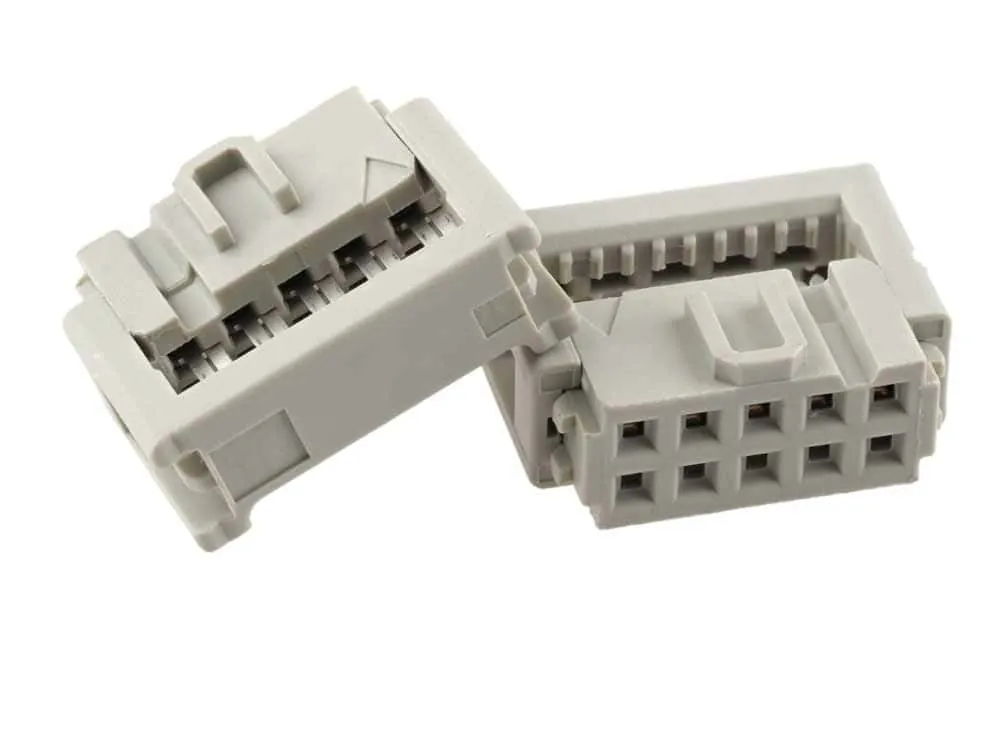

10‑pin, 2.54 mm pitch IDC connector for flat ribbon cable.
Custom Ribbon Cable Assemblies for OEM Demands
At Cable Harness Assembly, our in‑house design and engineering teams transform your specifications into fully validated ribbon cable assemblies. Using advanced CAD tools, we optimize conductor sizes, insulation materials, connector selection, and routing to ensure seamless integration into your product.
Design and Prototyping
Our process begins with a detailed review of your electrical, mechanical, and environmental requirements. We create digital prototypes and iterate through design options to balance performance, manufacturability, and cost. Physical prototypes are then built and subjected to initial bench‑level validation before moving to full production.
Volume Production
With access to over 5,000 distinct components—wires, connectors, strain reliefs, and protective sleeves—we leverage automated IDC termination machinery and lean manufacturing practices to deliver consistent, high‑volume output. Every assembly is produced to your exact bill of materials, with in‑line process controls that maintain repeatability.
Environmental Testing and Validation
We verify assembly robustness through a battery of tests that replicate real‑world conditions: thermal cycling, high‑humidity exposure, salt spray, flexing, and vibration. Assemblies destined for medical, aerospace, or automotive use undergo additional scrutiny to comply with industry‑specific reliability standards.
3‑pin IDC female connector, typical of internal fan and sensor wiring.
Design for Manufacturing (DFM) and Certification Considerations
Successful OEM integration depends not only on connector choice but also on adherence to industry standards. Our design for manufacturing (DFM) reviews optimize the assembly for automated production while ensuring full compliance with the following specifications:
- IPC/WHMA‑A‑620: The benchmark for cable and wire harness assembly workmanship and quality, covering processes, materials, and inspection criteria. We certify our assemblies to Class 2 or Class 3 requirements as needed.
- IATF 16949: For automotive OEMs, we maintain IATF 16949 certification, demonstrating a quality management system aligned with the stringent demands of the automotive supply chain, including product traceability and defect prevention.
- AS9100: Aerospace and defense primes require AS9100 certification, which adds risk management and configuration control to the ISO framework. We deliver cable assemblies that meet this standard.
- ISO 13485: Medical device OEMs benefit from our ISO 13485 compliance, ensuring that cable assemblies for diagnostic and therapeutic equipment meet regulatory expectations for safety and performance.
These certifications are supported by full material and lot traceability throughout the supply chain and manufacturing process.
Conclusion
From concept to volume delivery, Cable Harness Assembly provides ribbon cable interconnect solutions engineered for the performance, reliability, and compliance demands of today’s OEMs. Our project management teams work to tight timelines and budgets, ensuring that your custom assembly integrates seamlessly into your production line. Contact our engineering team to discuss your next ribbon cable project.
