Mission-Ready MIL-Spec Cable Assemblies for Defense, Aerospace & OEM Applications

Understanding MIL-Spec Wiring for OEM Applications

MIL-spec wiring refers to cable assemblies manufactured to rigorous United States military standards, ensuring peak performance under extreme operational conditions. Governed by bodies such as ANSI, NEMA, and SAE, these specifications define materials, construction, and testing protocols that deliver unmatched reliability. For OEM buyers in defence, aerospace, and high-performance automotive sectors, sourcing MIL-spec wiring guarantees components that withstand harsh environments, electromagnetic interference, and prolonged service life without compromising safety.

Key Advantages of MIL-Spec Cable Assemblies

OEM engineers prioritize MIL-spec wiring for its distinctive benefits:

Superior Durability

Designed to endure temperature fluctuations, chemical exposure, and ultraviolet radiation, MIL-spec cables maintain integrity where conventional wiring fails. This durability reduces unexpected downtime and extends asset lifespan across land, sea, and air platforms.

Mission-Critical Reliability

Every MIL-spec assembly undergoes extensive qualification testing to verify performance under vibration, shock, and moisture. Such reliability is non-negotiable for communication systems, weapons controls, and avionics where a single failure could compromise the mission.

Operational Efficiency

MIL-spec wiring minimizes signal loss and maximizes conductivity, ensuring clear communication in electronic warfare and satellite systems. High data integrity and low error rates translate directly to operational superiority.

Enhanced Safety Compliance

Built with flame-retardant, low-toxicity materials, these cables mitigate risks of fire and explosion. They meet stringent safety standards, protecting both personnel and equipment in confined or hazardous compartments.

Reduced Total Cost of Ownership (TCO)

While initial procurement may be higher, the extended maintenance intervals and decreased failure rates of MIL-spec wiring lower TCO significantly—a critical factor for procurement managers balancing budget and readiness.

Essential MIL-Spec Standards for OEM Sourcing

Procurement engineers should be familiar with the following key specifications:

M16878

This standard covers high-voltage wiring with insulation options including ETFE, Polyalkene-PVC, and PVC. It excels in extreme temperature applications; the M16878/5 grade is optimal for high-temperature electronics, while M16878/4 suits power distribution and appliance wiring.

M22759 (SAE AS22759)

The go-to choice for aerospace systems, M22759 wiring withstands moisture and high-temperature exposure, making it indispensable for engine controls and flight-critical avionics. Its robust insulation ensures reliable signal transmission in vibration-prone environments.

M13486

Ideal for low-tension military vehicle circuits, M13486 offers exceptional moisture resistance, flexibility, and abrasion tolerance. It is widely deployed in ground tactical vehicles and support equipment.

M25038

When direct flame exposure or extreme vibration is a concern, M25038 delivers. This specification is common in aircraft circuits where fire resistance and mechanical resilience are paramount.

M5086

A general-purpose option featuring a tin-plated copper conductor with nylon jacket and PVC insulation. It performs reliably in chemical-laden and abrasive environments, suitable for a broad range of military and industrial applications.

Primary Applications in Defense, Aerospace, and Automotive

MIL-spec wire harnesses support mission-critical platforms:

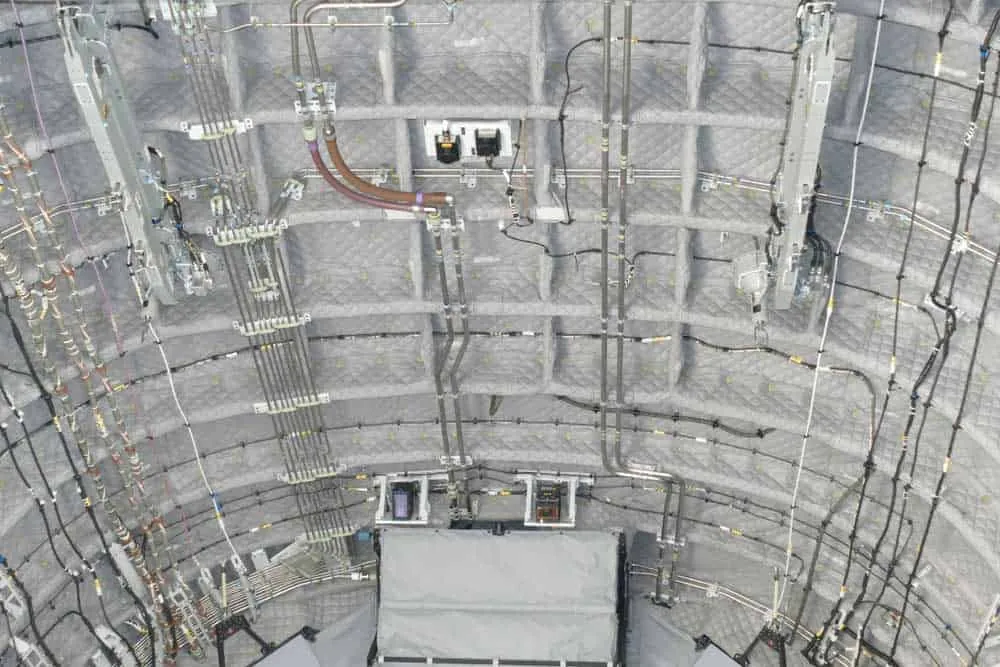

• Space vehicles and satellite communication/navigation payloads.
• Military ground equipment and tactical vehicles operating in harsh terrains.
• Marine and submersible systems subject to saltwater corrosion.
• EMI-sensitive equipment requiring effective shielding.
• Unmanned systems, including military-grade drones and remote weapon stations.
• Avionics, microwave/RF communications, and mobile tactical centers.

Critical Compliance and Assembly Requirements

Manufacturers of MIL-spec cable assemblies must adhere to a multi-layered framework:

• Functional design requirements drive conductor selection and insulation system.
• Environmental sealing, shielding, and connectorization are defined by the operational theatre.
• Compliance with MIL-STD-454 is mandatory for military electronic equipment.
• Industry bodies such as NEMA, IPC, WHMA, and the Qualified Products List (QPL) dictate workmanship and quality benchmarks.

Design for Manufacturing (DFM) and Certification Considerations

Achieving MIL-spec performance at scale demands robust DFM practices. Our engineering teams collaborate with OEM clients early in the design phase to optimize form factor, material selection, and assembly processes—reducing lead times and minimizing rework. We employ modular tooling and standardized work instructions to maintain repeatability across production runs.

All our manufacturing sites are certified to IPC/WHMA-A-620, the authoritative standard for cable and wire harness assembly acceptability. This certification validates our adherence to stringent criteria for soldering, crimping, strain relief, and overall workmanship, giving procurement engineers confidence in consistent quality.

For sector-specific requirements, we maintain additional certifications: AS9100 for aerospace and defense projects, IATF 16949 where MIL-spec wiring is adapted for electric vehicle drivetrains and battery management, and ISO 13485 for medical device interconnects demanding reliability and traceability. By aligning with these standards, we ensure your finished assembly meets all regulatory and performance milestones, from first article inspection to full-rate production.

Summary

MIL-spec wiring is the benchmark for reliability in defence and aerospace systems, and its principles are increasingly adopted by automotive and industrial OEMs seeking zero-failure performance. Partnering with a supplier that not only meets but exceeds these specifications ensures your assemblies are built to survive the most demanding environments while remaining cost-effective over the equipment lifecycle.
