Rosenberger Cable Assembly
Custom Rosenberger connector cable assemblies for automotive RF, high-speed data, camera, antenna, test equipment, and industrial measurement applications.
- Rosenberger cable assemblies fit automotive RF, HSD data, antenna, camera, and test equipment programs.
- We quote from drawings, connector keys, cable family, length tolerance, and test requirements.
- Prototype reviews have no MOQ; repeat builds can include labels, revision control, and lot traceability.
- RF-sensitive builds can add insertion loss, return loss, or VNA checks after standard electrical testing.
Rosenberger Cable Assembly Capabilities
Rosenberger builds are quoted from connector identity, cable construction, test method, and sourcing rules rather than a generic connector name.
High-Impedance Recovery on a Fine Coax Program
A European thermal imaging OEM experienced a critical production halt due to high impedance defects in a micro-coaxial cable assembly used for a beta production series.
The failure affected 1296 defective units out of 2000 on AWG#40, CABLINE-VS 1:1, 100mm length assemblies, creating both a technical problem and a customer-trust problem.
We halted production, worked with the customer's engineering team, identified a specification and testing-method mismatch, updated the test report, and rebuilt samples before replacement production.
The team processed 1296 replacement units and retained the long-term partnership. The lesson carries directly into Rosenberger RF and data builds: the test method must match the real signal requirement before production release.
Where Rosenberger Connector Cables Fit
Rosenberger connector cable assembly work is usually selected when keyed RF or data interfaces need supplier discipline beyond a catalog jumper.
Automotive Data Links
Rosenberger HSD and HFM-style assemblies for cameras, displays, infotainment, USB, Ethernet, and ADAS-related vehicle links.
RF and Antenna Systems
FAKRA and coaxial connectorized cables for GPS, cellular, Bluetooth, WiFi, radio, and production test interfaces.
Industrial Measurement
Shielded cable assemblies for cameras, sensor heads, 3D vision equipment, and compact instruments that need controlled routing.
Qualified Vendor Builds
Programs that require NDA handling, source verification, first article review, and repeatable release documentation.
Rosenberger Builds Depend on Keying, Shield Control, and Test Definition
A Rosenberger connector is a specified interconnect component family used across RF, automotive data, and precision measurement applications. A Rosenberger HSD cable is a shielded differential data cable assembly for high-speed vehicle or equipment links. A Rosenberger FAKRA cable is a keyed automotive RF coaxial assembly used for antenna, camera, GPS, and infotainment paths.
We treat Rosenberger drawings as controlled interface documents. The part number, key code, gender, cable exit, and shield termination decide the tooling and inspection method. For background, buyers often compare the underlying RF connector principle with the behavior of coaxial cable; both affect signal quality after assembly.
Rosenberger publishes connector and cable assembly families for RF, data, and power transmission, including Rosenberger HSD, HFM, FAKRA, and precision RF products. We use that supplier identity as the starting point, then build the practical manufacturing plan around source availability, IPC/WHMA-A-620 workmanship expectations, ISO 9001 traceability, and the customer's release test.
Send Rosenberger RFQRFQ Details That Prevent Wrong Connector Builds
Most Rosenberger quote delays come from missing key codes, undefined cable exits, or test requirements that are added after samples are built.
- Rosenberger part number or connector family with key code and gender
- Cable family, impedance, shield construction, and jacket material
- Installed length, tolerance, exit direction, bend radius, and strain relief
- Frequency band, data rate, insertion loss, return loss, or impedance target
- Prototype quantity, production forecast, packaging, labels, and revision control
- Any restricted sourcing rule: genuine Rosenberger only, approved equivalent, or consigned parts

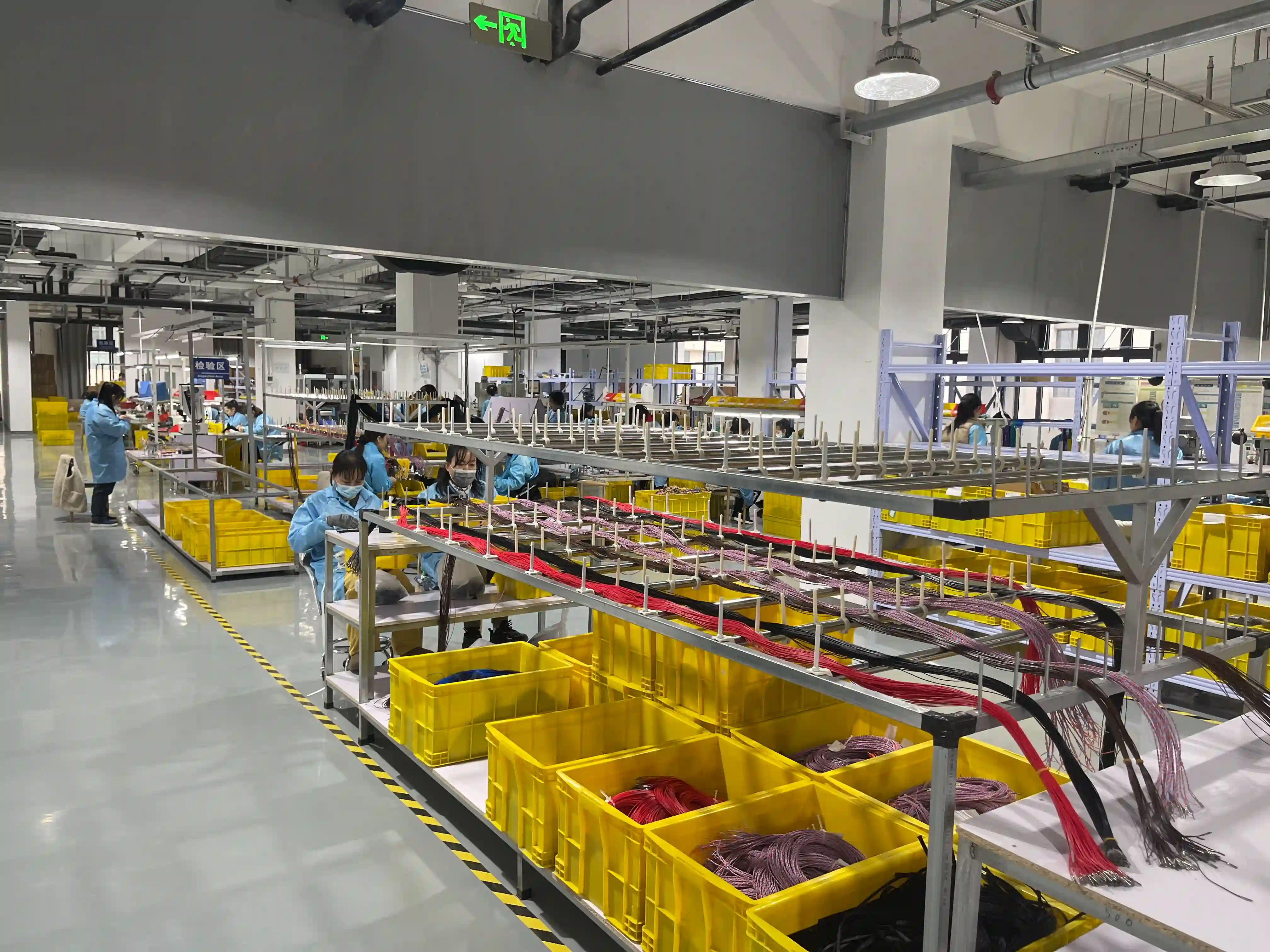

Controlled Rosenberger Assembly Process
The process is built to catch connector-definition mistakes before they become line-stopping production escapes.
Connector Definition
We verify Rosenberger family, key code, gender, cable exit, plating, panel hardware, and whether the design uses genuine, approved-equivalent, or customer-supplied parts.
Cable and Test Plan
Engineering reviews impedance, shielding, bend radius, installed length, RF or data rate expectations, and whether continuity testing is enough for release.
Pilot Build
The first article locks strip dimensions, crimp tooling, shield treatment, label content, connector orientation, and packaging before production scaling.
Production Release
Repeat lots follow the approved BOM, drawing revision, inspection checklist, and electrical test method with lot traceability when requested.
How We Position Rosenberger Work Against Nearby RF Pages
This page targets buyers who have already named Rosenberger in the BOM or drawing. For broader RF connector selection, use our RF connector cable assembly page. For general coax selection, our coaxial cable assembly page covers cable families, shielding, and connector choices across multiple brands.
Automotive programs often combine Rosenberger FAKRA, HFM, or HSD links with FAKRA cable assembly, Mini FAKRA cable assembly, and automotive wire harness work. That combination changes the RFQ: the cable set must satisfy electrical performance, mechanical routing, label control, and vehicle assembly fit at the same time.
The practical trade-off is sourcing flexibility. Exact Rosenberger part control protects the qualified interface, but it can increase lead time when a connector is constrained. Approved equivalents may keep a pilot on schedule, yet they require mating checks and customer approval. We document that decision before sampling so procurement, engineering, and quality teams work from the same release basis.
Vendor Qualification and Documentation
Rosenberger connector cable programs often start before the full drawing package can be released. In one North American industrial measurement project, the customer required a signed NDA and multi-tier supplier approval before sharing the custom assembly specification. The vetting phase lasted 3-month vetting phase, then the team issued a formal inquiry for assemblies using 1x20 Pin Samtec connector, 1x10 Pin Samtec connector, and 100mm cable length with a quoted 4-week lead time.
That case was not a Rosenberger design, but the procurement pattern is the same: sensitive connectorized assemblies need controlled documents, protected drawings, clear approval channels, and fast quote turnaround after the NDA gate opens. For Rosenberger RFQs, we can work from partial information first, then finalize price and lead time after the exact connector key and cable specification are released.
Rosenberger Cable Assembly FAQs
Answers to RFQ-stage questions about sourcing, testing, lead time, and technical definition for Rosenberger connector cable assemblies.
A Rosenberger cable assembly is a connectorized cable built with Rosenberger RF, FAKRA, HFM, HSD, or related data connector families for automotive antennas, cameras, displays, infotainment, sensors, and test equipment. Most RF builds use 50 ohm coaxial cable, while HSD-style links often use shielded differential cable. We confirm the connector key, cable type, length tolerance, and test plan before quoting.
Yes, we can build Rosenberger HSD and HFM-style cable assemblies when the drawing defines the exact connector key, cable type, orientation, and validation method. Automotive programs usually need tighter control than generic RF jumpers because a wrong key code or shield termination can block mating or degrade high-speed data performance. We tie the build to IPC/WHMA-A-620 workmanship expectations, drawing revision control, and 100% electrical testing.
No, 200 Rosenberger FAKRA cable assemblies is a normal pilot quantity for our workflow, and we support prototype reviews with no MOQ. The main timing risk is connector availability, not the assembly volume. Send the Rosenberger part number, cable family, length, color code or key code, and test requirement so we can confirm whether stock parts, approved substitutes, or customer-supplied connectors make the most practical path.
Every Rosenberger RF coaxial cable assembly receives 100% electrical continuity testing before shipment. RF-critical builds can add insertion loss, return loss, VSWR, or VNA-based checks tied to the customer frequency band. For automotive antenna and camera links, we also inspect connector keying, shell seating, cable exit direction, shield capture, label content, and installed length against the released drawing.
Genuine Rosenberger connectors are the right choice when the OEM drawing, qualification file, or mating interface requires that exact part. Approved equivalents can reduce sourcing risk when the drawing permits alternatives and the program can validate mating, electrical performance, and environmental fit. We document that decision during RFQ review because a connector substitution can affect lead time by weeks and can require a new first article sample.
Send a drawing or sketch, Rosenberger connector part numbers, cable specification, installed length, tolerance, quantity, target lead time, and test criteria. If the design is not frozen, include photos of the mating interface and the operating environment. The most common quote delay is a missing key code, gender, or cable exit direction, so we check those fields before releasing a price.
Related RF and Automotive Cable Services
FAKRA Cable Assembly
Automotive RF cables for GPS, antenna, camera, and telematics links
Mini FAKRA Cable Assembly
Compact automotive RF cable assemblies for dense vehicle modules
RF Connector Cable Assembly
SMA, BNC, TNC, N-Type, FAKRA, MCX, and other RF interfaces
Coaxial Cable Assembly
Custom coax cable builds with shielding, routing, and RF test options
Automotive Wire Harness
Vehicle wiring harnesses with connector, label, and routing control
Connector Selector
Compare connector families before finalizing a cable assembly RFQ
Need Rosenberger Connector Cable Assemblies?
Send your connector part number, cable specification, key code, length, quantity, and test requirement. Our engineering team will review manufacturability and sourcing risk before quoting.
